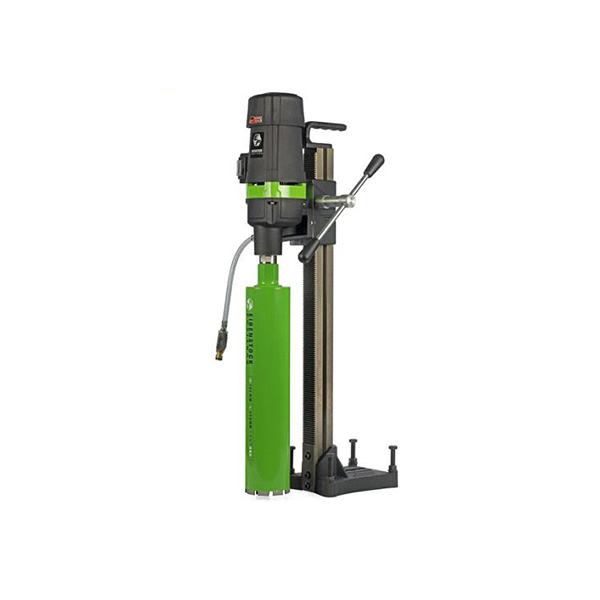

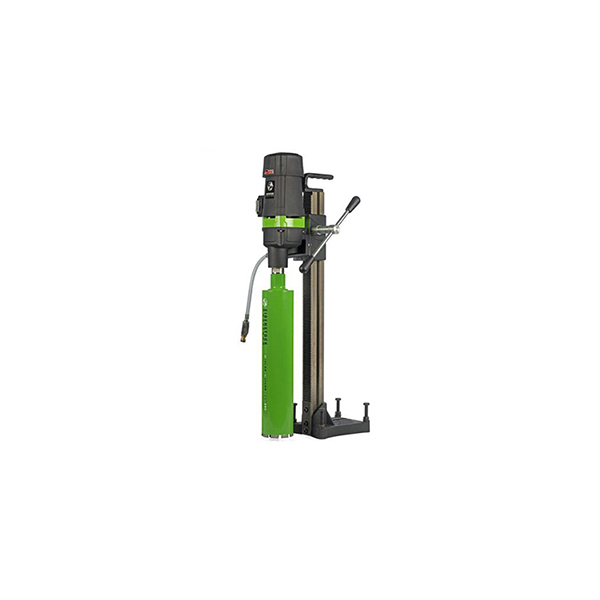

PDB 200 Diamond Core Drill Machine

PDB 200 Diamond Core Drill Machine

Our Concrete core drill machine can drill upto 200 mm in re-enforced concrete easily with a powerful 2500 Watt motor. The only machine in its price range to offer oil cooled gear box which gives long working life to the contractor especially where they need to make many holes in a single day.

PDB 200 Diamond Core Drill Machine

PDB 200 Diamond Core Drill Machine

Use

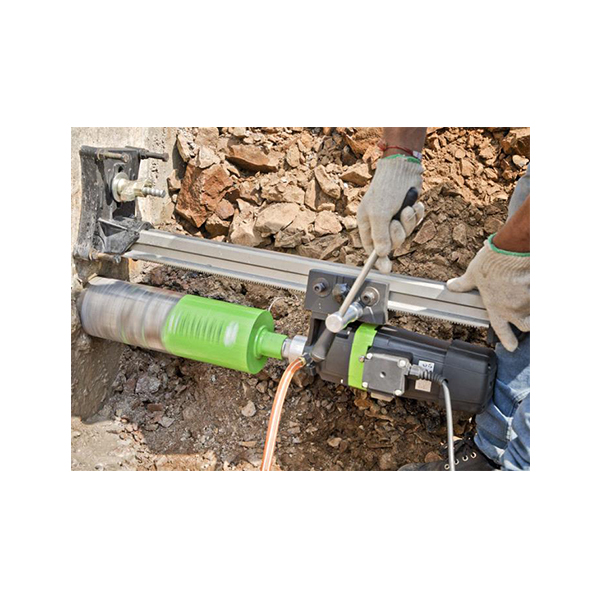

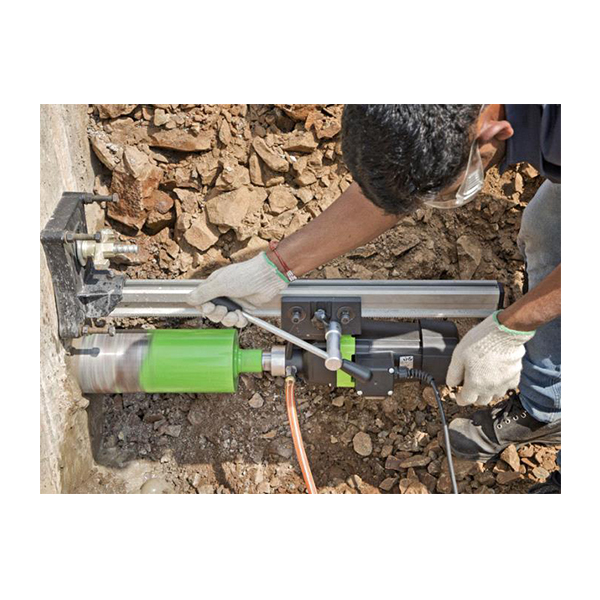

– Wet drilling in reinforced concrete, natural stone and asphalt.
– Sanitary, heating and ventilation construction, other engineers, civil engineering, landscape construction.

Specifications

– Rated Voltage (V) : 220-240
– Power Input (W) : 2,500
– Core Cutting Capacity (mm) : 200
– Mechanical Safety Clutch : Available
– Spindle Connection : 1 1/4” UNC
– Stroke (mm) : 490
– Rated speed(RPM) : 450
– Weight (Kg) : 14

Features

– Switch with over current cut-off – protection against overloading of the motor
– Cutt-off carbon brushes – protection of the motor
– 1-speed oil bath gearbox – optimal lubrication
– Mechanical safety clutch
– Integrated water supply
– Stainless steel-combination spindle for connecting to R½” and 1¼” drill bits
– Motor and rig as a complete unit
– Handy, robust and economical
– Space-saving, compact drilling unit – low weight

Scope Of Delivery

– Spanner
– Service Sheet
– User Manual
