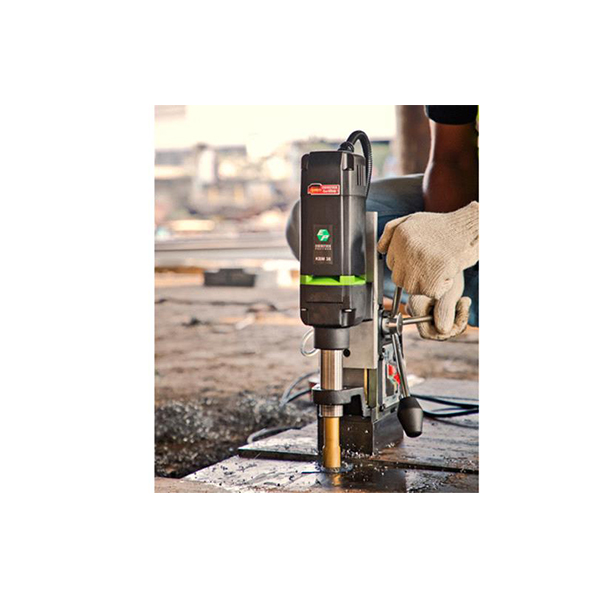

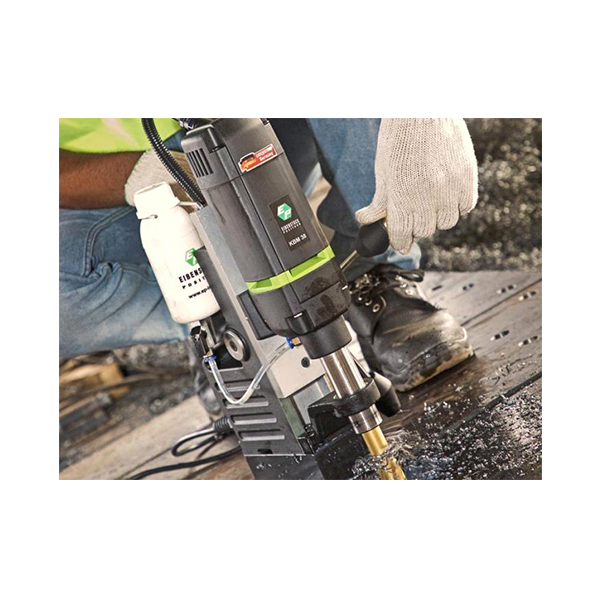

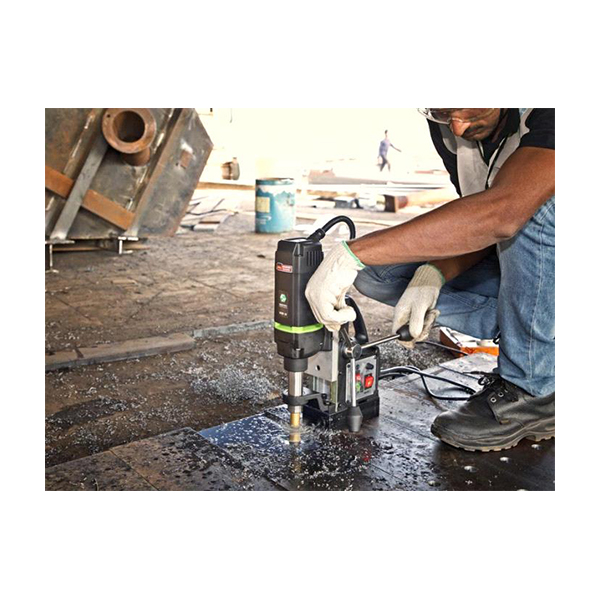

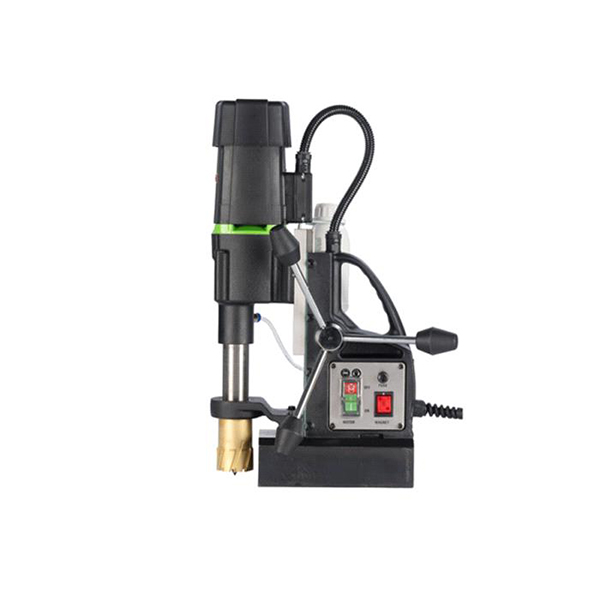

KBM 38 Magnetic Drill Machine



This machine remains one of our best selling Magnetic core drill machine which is weighing at only 10.5 Kg and capable of drilling 12mm-38 mm in steel upto 50 mm depth. With added Spindle support it remains extremely popular with customers who need to drill large number of holes each day.

Description

  • Rated Voltage (V) : 220-240
  • Power Input (W) : 900
  • Core Cutting Capacity (mm) : 12 to 38
  • Core Cutting Depth (mm) : 50
  • Rated Speed (RPM) : 400
  • Weight (kg) : 10.5
  • Electrical installation, sanitary and heating installations
  • Civil engineering, industrialised building construction
  • Line lockout
  • Safety Belt
  • Carrying Case
  • Powerful motor
  • Superb service life
  • Extremly lightweight
  • Powerful electromagnet
  • Internal cable arrangement
  • Epoxy sealed waterproof base
  • Internal spindle cooling system
  • Safety fuse protection for magnet
  • 100% high tensile aline headed screws
  • Compact, Light weight magnetic core drill with superb ease of use vertical and overhead use.
  • Unmistaken arrangement of switch for magnet & drill to ensure safety of operator
  • Core Bits – Optional accessory as per your requirement.
  • Accessory Pouch
  • Allen Key 2.5 mm
  • Allen Key 3 mm
  • Allen Key 4 mm
  • Guide pin 7.98×108.8 mm
  • Guide pin 6.34 x 107.8 mm
  • Hex Spanner M5
  • Fuse 8 Amp.
  • 20 UNF Drill Chuck Adaptor 19 mm
  • SH Grub Screw m8 x 8
  • 18×50 tct Annuler cutter
  • Cutting oil bottle
  • Coolant Bottle
  • Belt SA
  • Safety Goggle
  • Hand Gloves Set
  • Service Sheet
  • User Manual
  • Carry case
