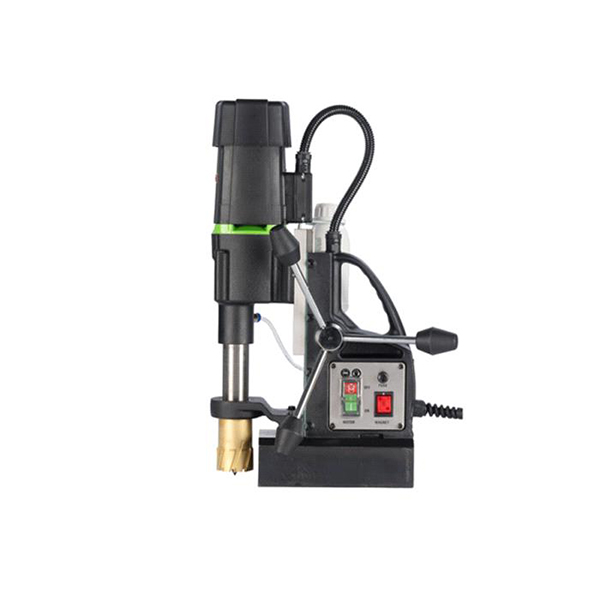

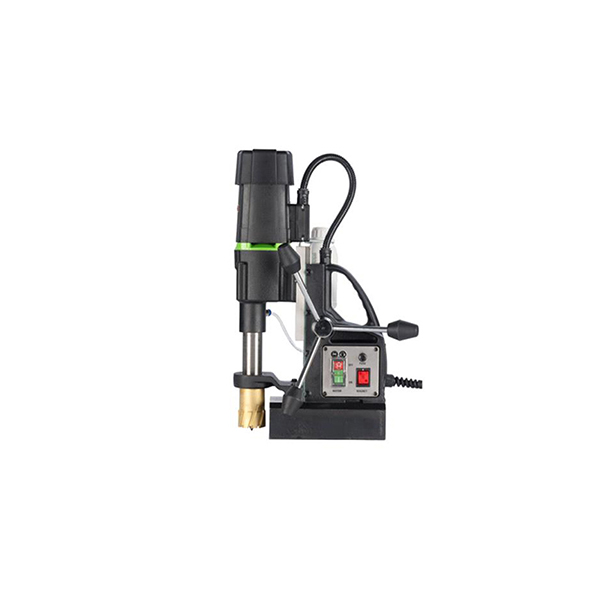

KBM 42-2 Magnetic Drill Machine

KBM 42-2 Magnetic Drill Machine

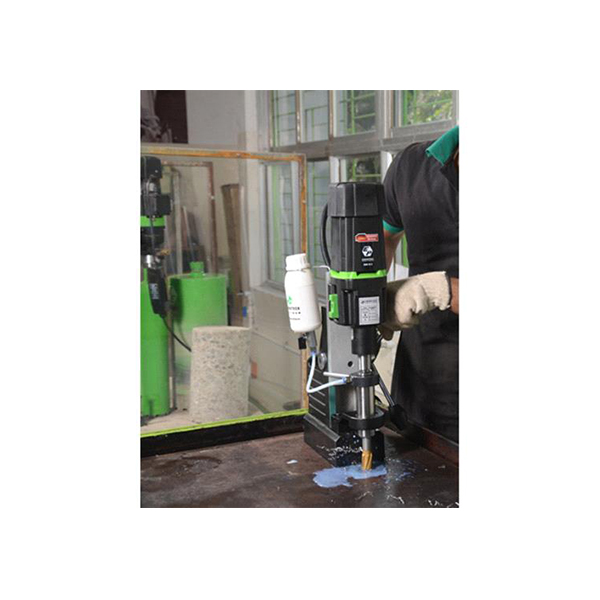

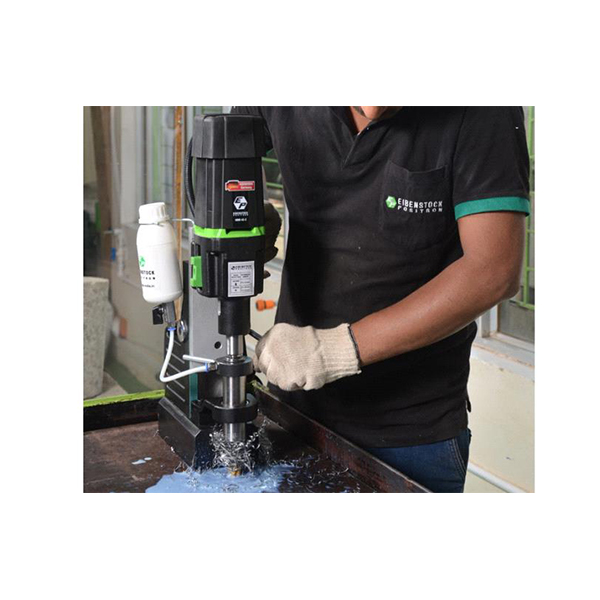

This machine with MK2 spindle gives option to the user to drill with either traditional drills up to 22 mm or to do core cutting from 12mm-42 mm upto 50 mm depth in steel. The weight of the machine is 17.7kg with a super powerful magnetic base to suit rugged construction site and special NRB support to the spindle to give more stability while drilling.

KBM 42-2 Magnetic Drill Machine

KBM 42-2 Magnetic Drill Machine

Use

– Electrical installation, sanitary and heating installations
– Civil engineering, industrialised building construction

Specifications

– Rated Voltage (V) : 220 – 240
– Power Input (W) : 1100
– Core Cutting Capacity (mm) : 12 to 42
– Core Cutting Depth (mm) : 50
– Rated Speed (RPM) : 450/250
– Weight (Kg) : 17.5
– Twist Drill Capacity (mm) : 22

KBM 42-2 Brochure KBM 42-2 DRIVE UNIT Service Sheet KBM 42-2 STAND Service Sheet

Features

– Line lock out
– Sagety Belt
– Powerful motor
– Superb service life
– Powerful electromagnet
– Epoxy sealed waterproff base
– Internal spindle cooling system
– Sefety fuse protection for magnet
– 100% high tensile alien headed screws
– Un-mistaken arrangement of switch for magnet and drill to ensure safety of operator
– Core-Bits – Optional accessory as per your requirement

Scope Of Delivery

– Accessory Pouch
– Allen Key 2.5 mm
– Allen Key 3 mm
– Allen Key 4 mm
– Allen Key 5 mm
– Guide Pin6 mm
– Guide Pin 8 mm
– Fuse 8amp
– Hex Spanner M5
– SH Grub Screw m10x8
– 18×50 mm TCT Annular Cutter
– Drift
– Coolant Bottle
– Cutting oil bottle
– Safety Goggle
Belt SA
– Hand Gloves Set
– Service Sheet
– User Manual
– Metal Carry Case
