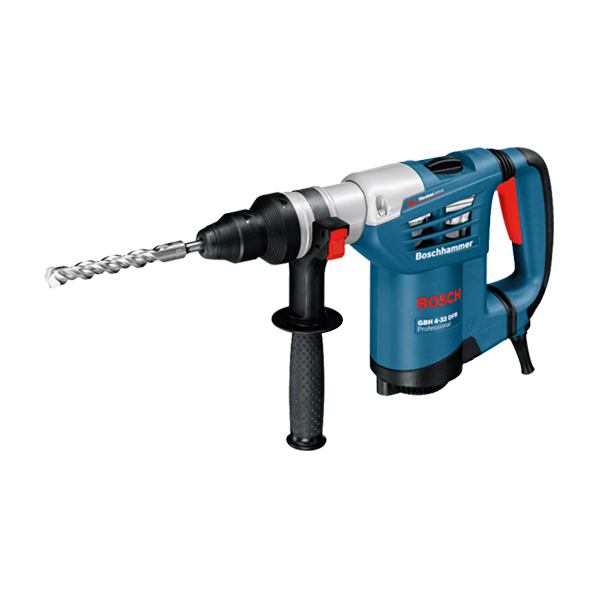

GBH 4-32 DFR Hammer Drill Machine

Bosch GBH 4-32 DFR Hammer Drill Machine

GBH 4-32 DFR Hammer Drill Machine



Advantages

The fastest multi-hammer in the 4kg class

  • Wide range of applications in chiselling and drilling work and when working with a core cutter
  • Drills up to 30% faster (25 mm diameter) than other tools in its class
  • Low vibration levels of only 12 m/s² for less tiring work due to Bosch Vibration Control

Functions

What’s Included in this Package

  • Auxiliary handle: 2 602 025 176
  • Carrying case: 2 605 438 651
  • Depth stop 310 mm: 1 613 001 003
  • SDS plus quick-change chuck: 2 608 572 213





Description

Technical data

Enquiry Now

Rated input power* 900 W
Impact energy* 4,2 J
Impact rate at rated speed 0 – 3.600 bpm
Rated speed 0 – 800 rpm
Weight 4.7 kg
Tool holder SDS plus
Drilling range
Drilling dia. concrete, hammer drill bits* 6 – 32 mm
Opt. appl. range concrete, hammer drill bits 14 – 25 mm
Max. drilling diameter masonry, core cutters 90 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 32 mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 12 m/s²
Uncertainty K 1.5 m/s²
Total vibration values (Chiselling)
Vibration emission value ah 9 m/s²
Uncertainty K 1.5 m/s²
