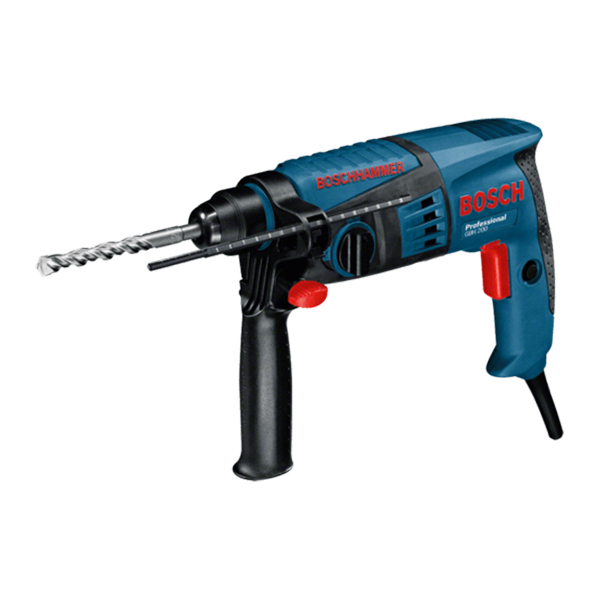

GBH 200 Professional Hammer Drill Machine

GBH 200 Professional Hammer Drill Machine

GBH 200 Professional Hammer Drill Machine

Advantages

The most compact and lightweight hammer in its class

  • Extremely compact design and low weight of only 2 kg, ideal for working overhead
  • High-torque motor and powerful hammer mechanism are optimised for fixing holes up to 10 mm
  • Reverse operation for removing screws

Functions





Description

Technical data

Rated input power* 550 W
Impact energy* 1,7 J
Impact rate at rated speed 0 – 3.960 bpm
Rated speed 450 – 1.550 rpm
Weight 2 kg
Tool dimensions (width) 70 mm
Tool dimensions (length) 316 mm
Tool dimensions (height) 191 mm
Tool holder SDS plus
Drilling range
Drilling dia. concrete, hammer drill bits* 4 – 20 mm
Opt. appl. range concrete, hammer drill bits 4 – 10 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 30 mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 15 m/s²
Uncertainty K 1.5 m/s²
