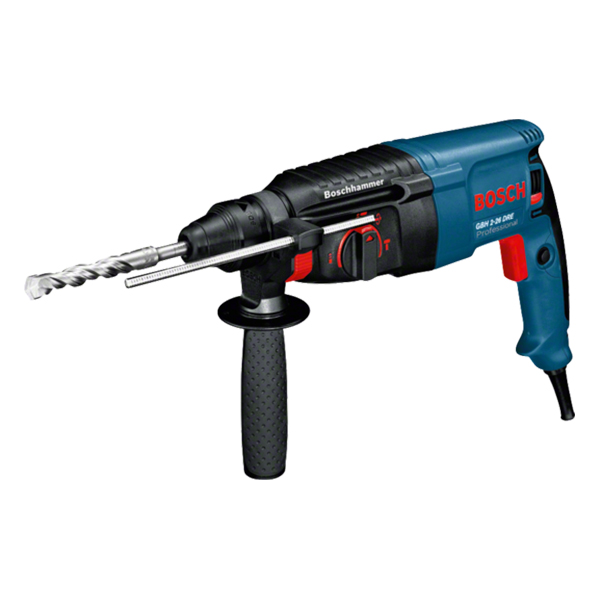

GBH 2-26 DRE Hammer Drill Machine

Advantages

Faster than a speeding bullet – The all-rounder for daily use

  • Superior drilling rate in the 2 kg hammer class
  • Rotation stop for chiselling
  • Impact stop for drilling in wood and steel

Functions



What’s Included in this Package

  • Auxiliary handle: 2 602 025 141
  • Carrying case: 2 605 438 098
  • Depth stop 210 mm: 1 613 001 010





Description

Technical data

Rated input power* 800 W
Impact energy* 2,7 J
Impact rate at rated speed 0 – 4.000 bpm
Rated speed 0 – 900 rpm
Weight 2.8 kg
Tool dimensions (width) 83 mm
Tool dimensions (length) 377 mm
Tool dimensions (height) 210 mm
Tool holder SDS plus
Drilling range
Drilling dia. concrete, hammer drill bits* 4 – 26 mm
Opt. appl. range concrete, hammer drill bits 8 – 16 mm
Max. drilling diameter masonry, core cutters 68 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 30 mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 17.5 m/s²
Uncertainty K 1.5 m/s²
Total vibration values (Chiselling)
Vibration emission value ah 9.5 m/s²
Uncertainty K 1.5 m/s²
